Handrails System PDF
Handrails System
Gold Wind Handrails System installs to add safety and security almost anywhere on your facility’s floor.
Gold Wind Industrial HandRail is commonly found in shipping areas to keep employees safe around dock height doors. Aisle ways can be formed with this heavy industrial steel handrail to separate fork trucks from employees walking through an active area of a production or warehouse floor.

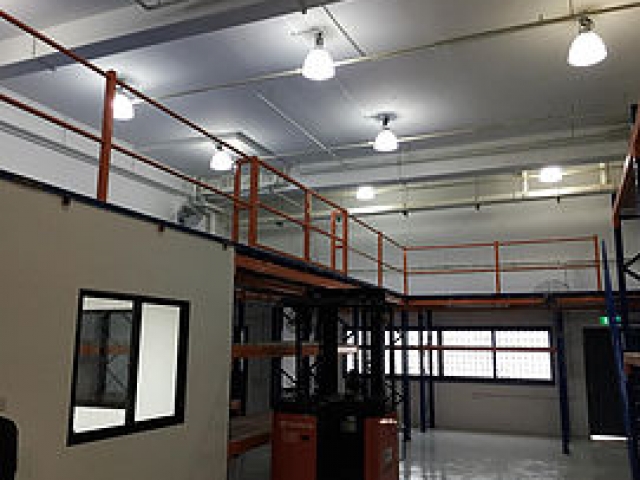

For those railing systems used at a second level or on a mezzanine, a 320mm high kick plate can be added to the hand rail system to keep small items from falling off the enclosed area. Hinged HandRail doors can also be added to control access to secure areas. When used on a mezzanine, these access doors enable you to load product at mezzanine levels from the ground floor. Single doors 4.5 ft wide or double hinged doors up to 9ft wide are available.
Handrail Post (Straight Line)
Post Height (A): 1004mm
Based Plate (B): 120mm x 120mm x 4.0mm Thk
Materials (C): Square Hollow Section 50 x 50 x 1.6mm Thick
Cap Cover (D): Black Plastic Cap Cover 50 x 50
Hole Position (E): Straight Line (Hole on Face to Face )
Origin: Malaysia
Materials: Steel
Finishing: Epoxy Powder Coated In Orange.
Weight: 3 kgs
Product Code: 01-HRS-100
Handrail Post (L Shape Line)
Post Height (A): 1004mm
Based Plate (B): 120mm x 120mm x 4.0mm Thk
Materials (C): Square Hollow Section 50 x 50 x 1.6mm Thick
Cap Cover (D): Black Plastic Cap Cover 50 x 50
Hole Position (E): L ShapeLine (Hole on left and Right)
Origin: Malaysia
Materials: Steel
Finishing: Epoxy Powder Coated In Orange.
Weight: 3 kgs
Product Code: 01-HRS-1000 C
Handrail Steel Pipe
Pipe Diameter: 33mm
Standard Length: 6000mm
Materials: Steel Pipe
Thickness: 1.9mm Thick
Finishing: Epoxy Powder Coated In Orange.
Weight: 3 kgs
Origin: Malaysia
Product Code: Plywood Skirting
Type of Wood: Multi Layer Plywood
Standard Size: 320mm x 2440mm (+/- 3mm)
Thickness: 18mm Thick (+/- 1mm)
Finishing: Roller Painted in Blue
Weight: Approximately 7.7 kgs
Origin: Malaysia
Product Code: Plywood Skirting
