Ladder Trolley PDF
Ladder Trolley
Ladder trolley is one of the useful equipment for retails shop, warehouse picking goods between 2.1 m ~ 3 Meters hight storage level.
The unique designed of the ladder trolley enable use as trolley and ladder at the same time. this function will be a great
help for those who work picking goods more than 2.1 meters.
The new upgrade ladder trolley also provided Gas spring instead of metal spring. once you step on the tread the ladder will automatically secure the position and prevent further moving.

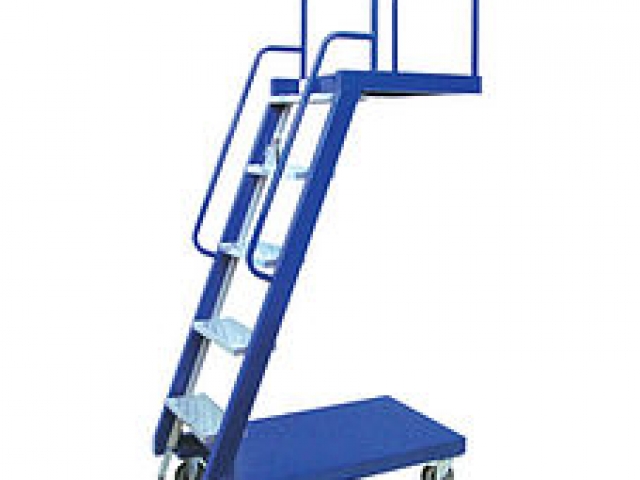

Ladder Trolley 5 Step ( LT-5)
Size (a): 2040mm (Overall Height)
Size (b): 1573mm (Floor to Deck)
Size (c): 1283mm (Internal Storage)
Size (d): 486mm (Deck Storage)
Size (e): 1070mm (Base Length)
Width: 555mm (Overall Width)
Origin: Malaysia
Materials: Steel
Colour: Epoxy Powder Coated in Blue
Wheel: 5″ Swivel Castor / Swivel Brake
Loading: Top 50kgs UDL / Bottom 150kgs UDL
Capacity: 350 kgs
Product Code: 11-LT-5
Ladder Trolley 3 Step ( LT-3)
Size (a): 1136mm (Overall Height)
Size (b): 1022mm (Floor to Deck)
Size (c): 730mm (Internal Storage)
Size (d): 715mm (Deck Storage)
Size (e): 1070mm (Base Length)
Width: 555mm (Overall Width)
Origin: Malaysia
Materials: Steel
Colour: Epoxy Powder Coated in beige
Wheel: 5″ Swivel Castor / Swivel Brake
Loading: Top 50kgs UDL / Bottom 150kgs UDL
Capacity: 350 kgs
Product Code: 11-LT-3
